Setup Guide
Provides a step-by-step guide to setup Oceanology requirments. If you need help adding Oceanology to your scene here is a tutorial video: Getting Started Video
Note
Before integrating Oceanology into your main project, generating a test project is recommended.

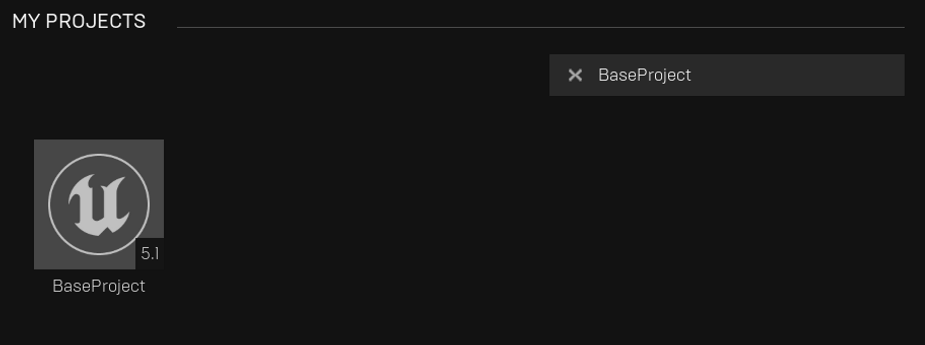

Before jumping into it lets create a new Unreal third person sample project. You may name it what you wish.

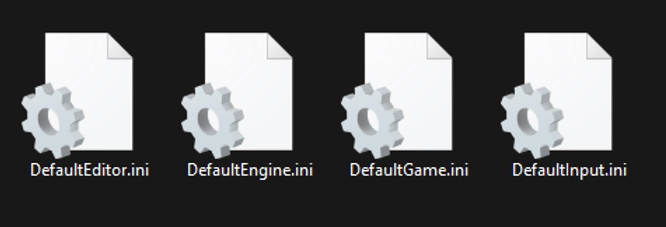

DefaultEngine.ini
These settings are important to make sure that your render settings play nice with oceanology. Feel free to merge your custom settings with the requirments below but keep in mind we can't test all settings so if you experience issues feel free to head over to our discord community.
Note

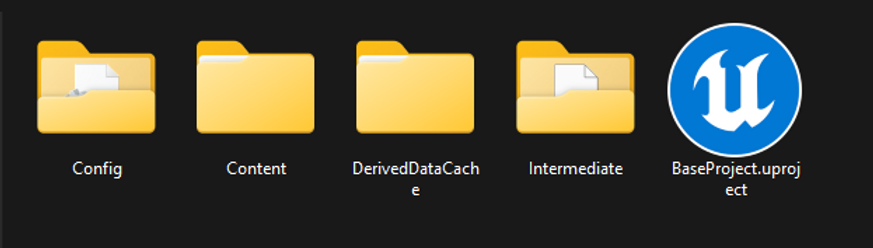

Important code may vary depending on the version of the engine. This code is used to correct rendering problems, such as strange artifacts and blinking when moving a plane. Add under the section [/Script/Engine.RendererSettings] below the default settings in project/config/defaultengine.ini

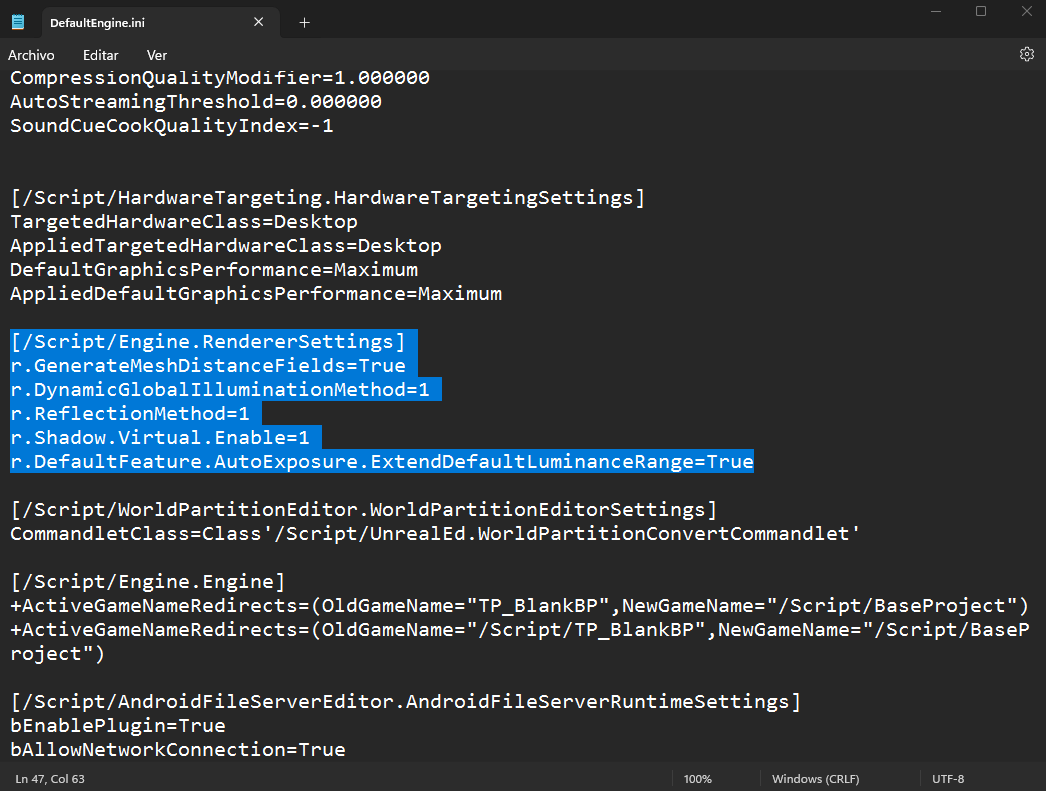

Open defaultengine.ini and look for [/Script/Engine.RendererSettings] looks approximately like:
[/Script/Engine.RendererSettings]
r.ReflectionMethod=1
r.GenerateMeshDistanceFields=True
r.DynamicGlobalIlluminationMethod=1
r.Lumen.TraceMeshSDFs=0
r.Shadow.Virtual.Enable=1
r.Mobile.EnableNoPrecomputedLightingCSMShader=1
r.DefaultFeature.AutoExposure.ExtendDefaultLuminanceRange=True
r.DefaultFeature.LocalExposure.HighlightContrastScale=0.8
r.DefaultFeature.LocalExposure.ShadowContrastScale=0.8
Now add:
;Lighting
r.SupportStationarySkylight=False
r.SupportLowQualityLightmaps=False
r.Mobile.EnableStaticAndCSMShadowReceivers=False
r.Mobile.AllowDistanceFieldShadows=False
r.DefaultBackBufferPixelFormat=4
;Optimized
r.optimizedWPO=1
;AntiAliang
r.AntiAliasingMethod=4
r.MSAACount=4
r.TSR.AsyncCompute=3
;MotionBlur
r.DefaultFeature.MotionBlur=False
;Velocity
r.VelocityOutputPass=2
;Shadow.Virtual
r.Shadow.Virtual.NonNanite.IncludeInCoarsePages=0
r.Shadow.Virtual.ForceOnlyVirtualShadowMaps=1
r.Shadow.Virtual.TranslucentQuality=0
r.Shadow.Virtual.Cache.DrawInvalidatingBounds=1
r.Shadow.Virtual.Cache.StaticSeparate=1
r.UseClusteredDeferredShading=1
r.Shadow.Virtual.OnePassProjection=1
r.Shadow.Virtual.NormalBias=1
r.Shadow.Virtual.ForceOnlyVirtualShadowMaps=1
;Distance Fields
r.DistanceFields.MaxPerMeshResolution=256
r.DistanceFields.SupportEvenIfHardwareRayTracingSupported=0
;SkinCache
r.SkinCache.MemoryLimitForBatchedRayTracingGeometryUpdates=128
r.SkinCache.MaxRayTracingPrimitivesPerCmdList=1000000
r.SkinCache.MaxDispatchesPerCmdList=1000
r.SkinCache.AllowDupedVertsForRecomputeTangents=1
r.SkinCache.RecomputeTangentsParallelDispatch=1
r.SkinCache.SceneMemoryLimitInMB=148
r.SkinCache.CompileShaders=True
r.SkinCache.DefaultBehavior=0
;GPU SkinCache
r.GPUSkin.Support16BitBoneIndex=True
r.GPUSkin.UnlimitedBoneInfluences=True
r.GBufferDiffuseSampleOcclusion=1
;Lumen
r.Lumen.ScreenProbeGather.ScreenTraces.HZBTraversal.UncertainTraceRelativeDepthThreshold=.02
r.Lumen.ScreenProbeGather.ScreenSpaceBentNormal.ApplyDuringIntegration=0
r.Lumen.Tracing.MaxTraceDistance=20000
r.LumenScene.SurfaceCache.MeshCardsMergedResolutionScale=1
r.LumenScene.SurfaceCache.MeshCardsMaxLOD=0
r.LumenScene.DirectLighting.OffscreenShadowing.TraceMeshSDFs=0
r.Lumen.HardwareRayTracing=1
r.Lumen.TranslucencyVolume.TraceFromVolume=1
r.Lumen.Reflections.RadianceCache=1
r.LumenScene.Radiosity.ProbeOcclusion=0
r.LumenScene.FarField=1
r.LumenScene.FarField.MaxTraceDistance=100000
r.Lumen.HardwareRayTracing.MaxIterations=128
r.Lumen.TraceMeshSDFs=0
r.Lumen.SampleFog=0
r.Lumen.Reflections.Contrast=0.75
r.Lumen.TranslucencyReflections.FrontLayer.EnableForProject=True
;ShadingRejection
r.TSR.History.SampleCount=32
r.TSR.ShadingRejection.Flickering.FrameRateCap=30
r.TSR.ShadingRejection.Flickering.MaxParralaxVelocity=2
r.TSR.ShadingRejection.Flickering.Period=3
;World Partition
wp.Runtime.RuntimeSpatialHashUseAlignedGridLevels=0
wp.Runtime.RuntimeSpatialHashSnapNonAlignedGridLevelsToLowerLevels=0
wp.Runtime.RuntimeSpatialHashPlaceSmallActorsUsingLocation=1
wp.Runtime.RuntimeSpatialHashPlacePartitionActorsUsingLocation=0
;Texture Streaming
r.Streaming.PoolSize=8000
r.MeshStreaming=True
;Occlusion
r.NumBufferedOcclusionQueries=2
r.InstanceCulling.OcclusionCull=1
;LevelStreaming
s.LevelStreamingActorsUpdateTimeLimit=10
s.UnregisterComponentsTimeLimit=5
;Nanite
r.Nanite.Streaming.Imposters=0
r.Nanite.CoarseMeshStreaming=True
r.Nanite.ProxyRenderMode=2
r.Nanite.Streaming.NumInitialRootPages=6144
r.Nanite.MaxNodes=2621440
;Shaders
r.Shaders.RemoveDeadCode=1
;GPU scene
r.GPUScene.ParallelUpdate=1
;Virtual Texture
r.VirtualTextures=True
r.VirtualTexturedLightmaps=True
bEnableVirtualTextureOpacityMask=True
r.VT.MaxUploadsPerFrame=500
r.VT.MaxUploadsPerFrameInEditor=1000
r.VT.MaxTilesProducedPerFrame=100
r.VT.MaxReleasedPerFrame=5
r.VT.NumGatherTasks=6
r.VT.SyncProduceLockedTiles=0
r.VT.IOPriority_HighPagePri=4
r.VT.CsvStats=2
[/Script/Engine.VirtualTexturePoolConfig]
+Pools=(Formats=(PF_DXT1), SizeInMegabyte=120, bAllowSizeScale=True, MinScaledSizeInMegabyte=37, bEnableResidencyMipMapBias=True)
+Pools=(Formats=(PF_DXT5), SizeInMegabyte=37, bAllowSizeScale=True, MinScaledSizeInMegabyte=8, bEnableResidencyMipMapBias=True)
+Pools=(Formats=(PF_BC4), SizeInMegabyte=37, bAllowSizeScale=True, MinScaledSizeInMegabyte=16, bEnableResidencyMipMapBias=True)
+Pools=(Formats=(PF_BC5), SizeInMegabyte=72, bAllowSizeScale=True, MinScaledSizeInMegabyte=16, bEnableResidencyMipMapBias=True)
+Pools=(Formats=(PF_BC6H), SizeInMegabyte=60, bAllowSizeScale=True, MinScaledSizeInMegabyte=30, bEnableResidencyMipMapBias=True)
+Pools=(Formats=(PF_BC7), SizeInMegabyte=72, bAllowSizeScale=True, MinScaledSizeInMegabyte=37 bEnableResidencyMipMapBias=True)
+Pools=(Formats=(PF_G8), SizeInMegabyte=200, bAllowSizeScale=True, MinScaledSizeInMegabyte=70 bEnableResidencyMipMapBias=True)
+Pools=(SizeInMegabyte=64, bAllowSizeScale=False, bEnableResidencyMipMapBias=False)
;NVidia DLSS
r.Streamline.DLSSG.Enable=1
r.NGX.DLSS.WaterReflections.TemporalAA=1
[/Script/DLSS.DLSSSettings]
bEnableDLSSInEditorViewports=True

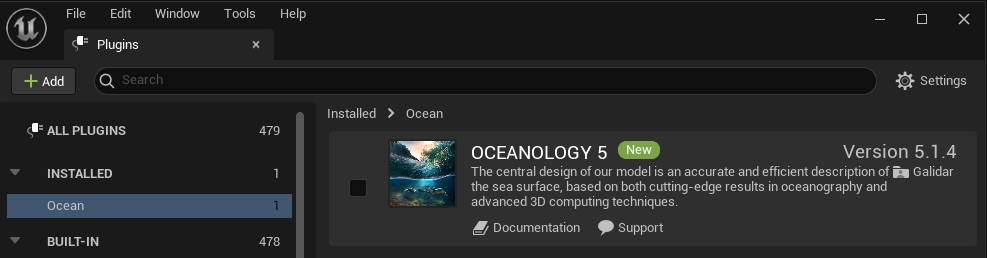

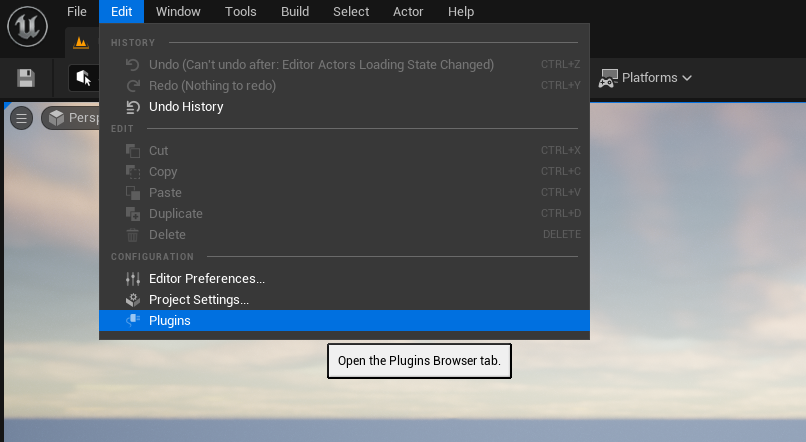

Next open your project you created above from the launcher and navigate to the plugins settings
