Prerequisites

• Unreal Engine 5.6 or newer.
• Oceanology Next-Gen installed and configured (see the Setup page).
• At least one Oceanology Next-Gen water body placed in your level (infinite ocean or lake).
• A character Blueprint with a Character Movement Component (the default Third Person template works well).
• Basic familiarity with Blueprints, components, and collision in Unreal Engine.

Notes

• Swimming in Oceanology Next-Gen requires two components working together: OceanBuoyancy handles floating physics while OceanSwimming manages swim locomotion and transitions.
• The Oceanology Water Volume must have swimming enabled for characters to enter swim mode when overlapping the volume.
• Water Interactor Meshes are optional but recommended — they create realistic splash effects when the character's hands interact with the water surface.
• This guide uses the included BP_ThirdPersonCharacter as a reference. You can apply the same setup to any character Blueprint.

---

Part 1 — Scene Setup

This section covers the essential Water Volume configuration required for swimming to work.

1. Add the required Oceanology actors to your scene

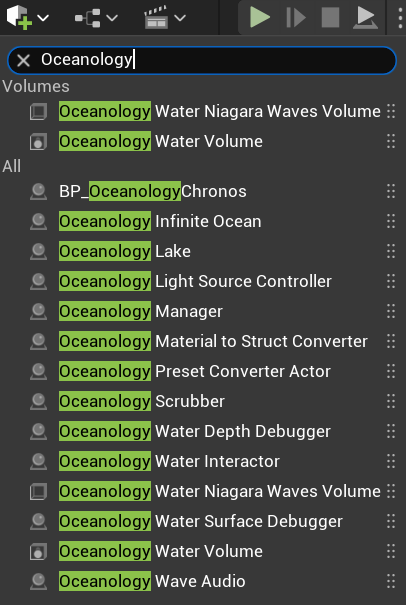

Open your level and use the Quickly Add to the Project menu (the + button in the toolbar or right-click in the viewport). Search for oceanology to filter the available actors.

You will need the following actors in your scene:

• Oceanology Manager — The central controller that manages all Oceanology systems.
• Oceanology Water Volume — Defines the region where swimming is enabled. Characters entering this volume can transition to swim mode.
• Oceanology Infinite Ocean — The infinite ocean water body.
• Oceanology Lake (optional) — A bounded lake water body for enclosed water areas.

Additional useful actors include:

• Oceanology Light Source Controller — Manages underwater lighting.
• Oceanology Wave Audio — Adds ambient wave sounds.
• Oceanology Water Interactor — Enables water surface interaction effects.

2. Configure the Water Volume for swimming

Select the OceanologyWaterVolume actor in the Outliner. In the Details panel, locate the Settings category. Configure the following options:

• Set Volume Bounds — Click this button to automatically adjust the volume boundaries to match your water body extents.
• Oceanology Water — Select which water body this volume tracks (e.g., OceanologyInfiniteOcean).
• Bounds Align Actor — Optionally align the volume to a specific actor.
• Check Initial Overlap on Begin Play — ✅ Enable this to detect characters already inside the volume when the game starts.
• Initial Overlap on Begin Play Delay — 0.5 seconds delay before the initial overlap check.
• Enable Buoyancy in Area — ✅ Enable for floating objects within the volume.
• Enable Swimming in Area — ✅ Enable this to allow characters to swim. This is the critical setting for swimming functionality.
• Physics Volume Terminal Velocity — 4000.0 — Maximum fall speed within the volume.
• Physics Volume Priority — 0 — Priority when multiple volumes overlap.
• Physics Volume Fluid Friction — 0.7 — Drag applied to actors in the volume.

3. Configure the Water Volume collision settings

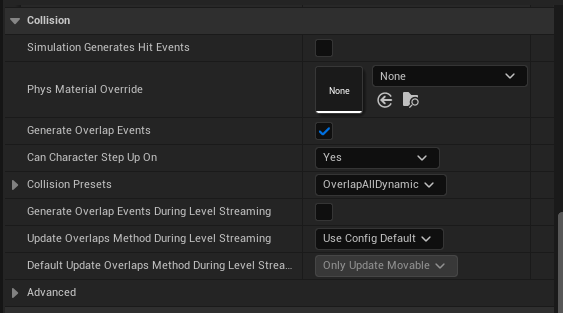

Still on the OceanologyWaterVolume, scroll to the Collision category. These settings determine how the volume detects overlapping actors:

• Simulation Generates Hit Events — ❌ Disabled (not needed for overlap detection).
• Generate Overlap Events — ✅ Enabled — Required for detecting when characters enter/exit the volume.
• Can Character Step Up On — Yes
• Collision Presets — OverlapAllDynamic
• Generate Overlap Events During Level Streaming — ❌ Disabled
• Update Overlaps Method During Level Streaming — Use Config Default
• Default Update Overlaps Method During Level Streaming — Only Update Movable

The OverlapAllDynamic preset ensures the volume detects all dynamic actors (including characters) without blocking their movement.

4. Adjust the Water Volume brush size

In the Brush Settings category, configure the volume dimensions to cover your swimming area:

• X — 160000.0 — Width of the volume.
• Y — 160000.0 — Depth of the volume.
• Z — 15000.0 — Height of the volume (should extend above and below the water surface).
• Wall Thickness — 10.0
• Hollow — ❌ Disabled
• Tessellated — ❌ Disabled
• Brush Shape — Box
• Display Shaded Volume — ❌ Disabled (enable temporarily to visualize the volume in editor).
• Shaded Volume Opacity Value — 0.25

For infinite oceans, use large X and Y values. The Z value should be tall enough that characters cannot swim above or below the volume boundaries.

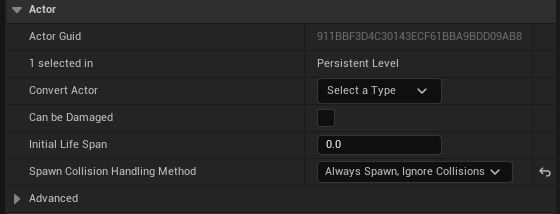

5. Review the Actor settings

In the Actor category, verify the spawn behavior:

• 1 selected in — Persistent Level
• Convert Actor — Leave as default.
• Can be Damaged — ❌ Disabled
• Initial Life Span — 0.0 (infinite lifespan).
• Spawn Collision Handling Method — Always Spawn, Ignore Collisions

The Always Spawn, Ignore Collisions setting ensures the Water Volume spawns correctly regardless of overlapping geometry.

---

Part 2 — Character Blueprint Setup

This section covers adding the required components to your character Blueprint for swimming functionality.

6. Locate the character Blueprint

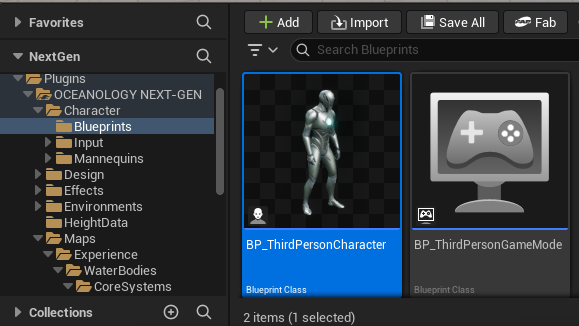

In the Content Browser, navigate to: Plugins > OCEANOLOGY NEXT-GEN > Character > Blueprints

Here you will find:

• BP_ThirdPersonCharacter — A pre-configured character Blueprint with swimming support. Use this as a reference or starting point.
• BP_ThirdPersonGameMode — The associated game mode for the third person character.

You can duplicate BP_ThirdPersonCharacter to create your own swimming character, or examine its component setup to apply the same configuration to your existing character.

7. Add the Ocean Swimming component

Open your character Blueprint in the Blueprint Editor. In the Components panel, click + Add and search for ocean.

You will see several Oceanology components available:

Buoyancy:

• Ocean Buoyancy — Handles floating physics. Required for swimming characters.

Custom:

• Ocean Audio — Water interaction sounds.
• Ocean Swimming — Add this component for swim locomotion.
• Oceanology Empty Wave Solver — Blank wave solver for custom implementations.
• Oceanology Game Time — Synchronizes game time with Oceanology systems.
• Oceanology Gerstner Wave Solver — Samples Gerstner wave displacement.
• Oceanology Heightmap — Samples heightmap-based water surfaces.
• Oceanology Infinite — References the infinite ocean system.
• Oceanology Underwater — Underwater post-processing effects.

Water Interaction:

• Ocean Water Interactor Mesh — Creates splash effects when interacting with water.

Add both Ocean Buoyancy and Ocean Swimming to your character.

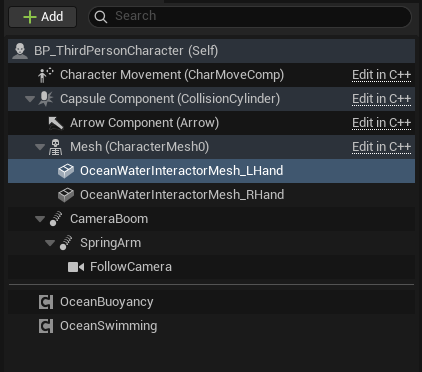

8. Review the component hierarchy

After adding the swimming components, your character's component hierarchy should include:

• BP_ThirdPersonCharacter (Self)
  • Character Movement (CharMoveComp) — Handles ground/air locomotion.
  • Capsule Component (CollisionCylinder) — Character collision.
    • Arrow Component (Arrow) — Forward direction indicator.
    • Mesh (CharacterMesh0) — The skeletal mesh.
      • OceanWaterInteractorMesh_LHand — Left hand water interaction (attached to mesh).
      • OceanWaterInteractorMesh_RHand — Right hand water interaction (attached to mesh).
  • CameraBoom — Spring arm for camera.
    • FollowCamera — Third person camera.
  • OceanBuoyancy — Floating physics component.
  • OceanSwimming — Swim locomotion component.

The OceanWaterInteractorMesh components are attached as children of the Mesh component so they follow the character's skeletal animation.

9. Configure the left hand Water Interactor Mesh

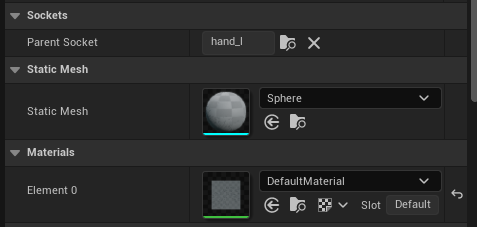

Select OceanWaterInteractorMesh_LHand in the component hierarchy. In the Details panel, configure:

Sockets:

• Parent Socket — hand_l — Attaches this mesh to the left hand bone of the skeleton.

Static Mesh:

• Static Mesh — Sphere — A simple sphere mesh for detecting water surface interaction.

Materials:

• Element 0 — DefaultMaterial — The material is not visible in-game; this mesh is used only for collision detection.

The sphere mesh attached to the hand socket will generate splash effects when the character's hand enters or exits the water during swimming animations.

10. Configure the left hand collision settings

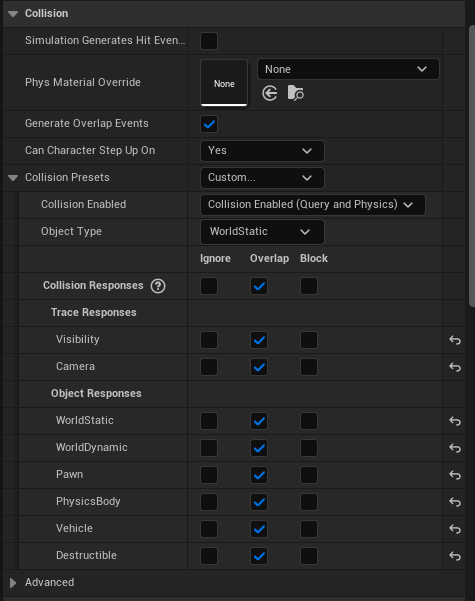

Still on OceanWaterInteractorMesh_LHand, scroll to the Collision category:

• Simulation Generates Hit Events — ❌ Disabled
• Generate Overlap Events — ✅ Enabled — Required for detecting water surface interaction.
• Can Character Step Up On — Yes
• Collision Presets — Custom...
• Collision Enabled — Collision Enabled (Query and Physics)
• Object Type — WorldStatic

Collision Responses: All channels set to Overlap:

• Trace Responses: Visibility ✅, Camera ✅
• Object Responses: WorldStatic ✅, WorldDynamic ✅, Pawn ✅, PhysicsBody ✅, Vehicle ✅, Destructible ✅

The overlap-only collision ensures the interactor mesh detects the water surface without interfering with character movement.

11. Select the right hand Water Interactor Mesh

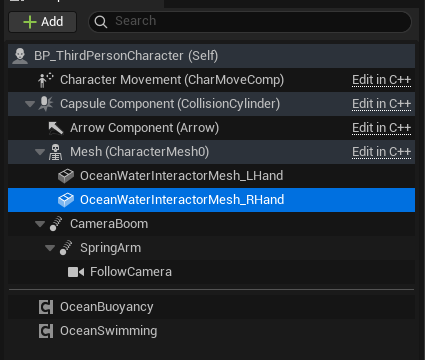

Select OceanWaterInteractorMesh_RHand in the component hierarchy. This component mirrors the left hand setup for the right hand.

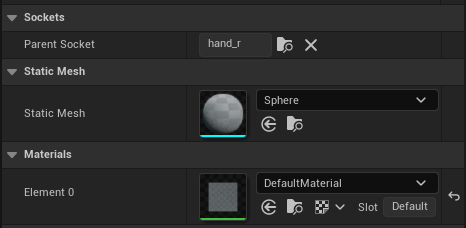

12. Configure the right hand Water Interactor Mesh

With OceanWaterInteractorMesh_RHand selected, configure the same settings as the left hand:

Sockets:

• Parent Socket — hand_r — Attaches to the right hand bone.

Static Mesh:

• Static Mesh — Sphere

Materials:

• Element 0 — DefaultMaterial

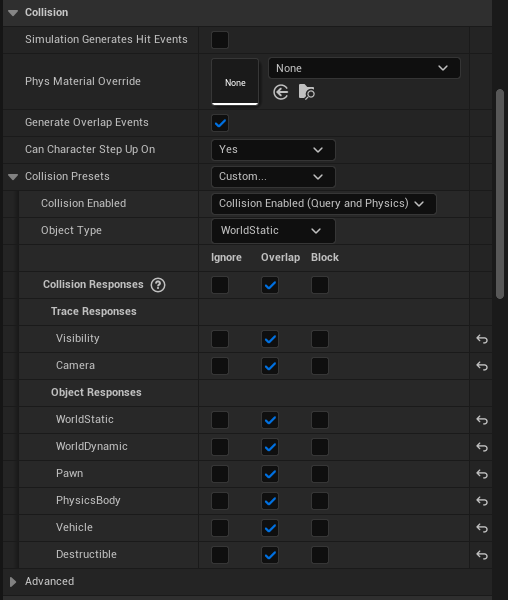

13. Configure the right hand collision settings

Apply the same collision settings as the left hand interactor:

• Simulation Generates Hit Events — ❌ Disabled
• Generate Overlap Events — ✅ Enabled
• Can Character Step Up On — Yes
• Collision Presets — Custom...
• Collision Enabled — Collision Enabled (Query and Physics)
• Object Type — WorldStatic

Collision Responses: All channels set to Overlap.

Both hand interactors should have identical collision configurations to ensure consistent splash effects.

---

Part 3 — Component Configuration

This section covers the detailed configuration of the OceanBuoyancy and OceanSwimming components.

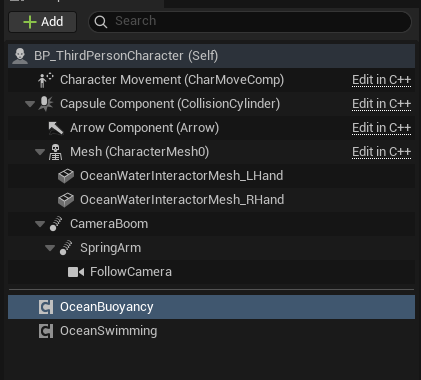

14. Select the OceanBuoyancy component

In the component hierarchy, select OceanBuoyancy. This component handles the floating physics that keep your character at the correct water level while swimming.

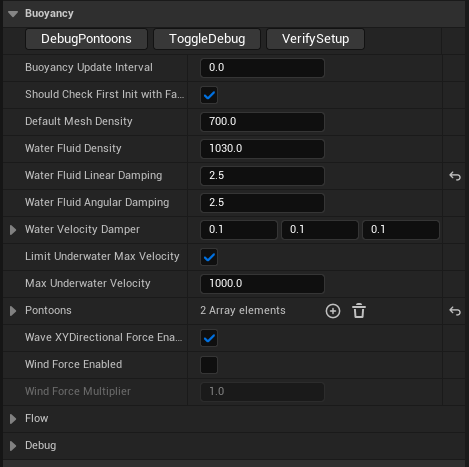

15. Configure the OceanBuoyancy settings

With OceanBuoyancy selected, locate the Buoyancy category in the Details panel:

Debug Controls:

• DebugPontoons — Click to visualize pontoon positions.
• ToggleDebug — Toggle debug visualization on/off.
• VerifySetup — Validate the buoyancy configuration.

Core Settings:

• Buoyancy Update Interval — 0.0 (updates every frame).
• Should Check First Init with Fail — ✅ Enabled
• Default Mesh Density — 700.0 kg/m³ — Lower than water (1030) so the character floats.
• Water Fluid Density — 1030.0 kg/m³ — Standard seawater density.
• Water Fluid Linear Damping — 2.5 — Reduces linear velocity in water.
• Water Fluid Angular Damping — 2.5 — Reduces rotational velocity in water.
• Water Velocity Damper — (0.1, 0.1, 0.1) — Per-axis velocity dampening.
• Limit Underwater Max Velocity — ✅ Enabled
• Max Underwater Velocity — 1000.0 — Maximum speed when submerged.

Pontoons:

• Pontoons — 2 Array elements — See next step for details.

Forces:

• Wave XYDirectional Force Enabled — ✅ Enabled — Waves push the character.
• Wind Force Enabled — ❌ Disabled
• Wind Force Multiplier — 1.0

16. Configure the Pontoons for character swimming

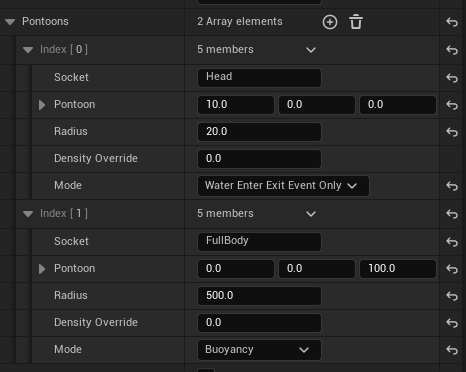

Expand the Pontoons array. For swimming characters, a two-pontoon setup works well:

Index [0] — Head Pontoon:

• Socket — Head — References the head bone.
• Pontoon — (10.0, 0.0, 0.0) — Offset from socket position.
• Radius — 20.0 — Small radius for head tracking.
• Density Override — 0.0 (uses default mesh density).
• Mode — Water Enter Exit Event Only — Only triggers enter/exit events, no buoyancy force.

Index [1] — Body Pontoon:

• Socket — FullBody — References the root or pelvis bone.
• Pontoon — (0.0, 0.0, 100.0) — Offset to center of mass.
• Radius — 500.0 — Large radius for stable floating.
• Density Override — 0.0
• Mode — Buoyancy — Applies buoyancy forces to keep the character afloat.

The head pontoon detects when the character's head enters/exits water (useful for underwater detection), while the body pontoon provides the actual floating force.

17. Configure the Flow settings

Expand the Flow category to configure how water currents affect the character:

• Enable Flow Physics — ❌ Disabled by default. Enable if your water body has flow/current.
• Angle Adjusted Force Strength — 35.0 — How strongly flow direction affects the character.
• Orient Mesh Rotation Yaw — ❌ Disabled — When enabled, rotates the character to face the flow direction.

Flow physics are useful for rivers or areas with ocean currents. For calm water, leave disabled.

18. Configure the Debug settings

Expand the Debug category for visualization options during development:

• Debug Enabled — ❌ Disabled in production. Enable to visualize pontoons in-game.
• Debug Sphere Color Pontoon — Gray — Color for pontoon positions.
• Debug Sphere Color Buoyancy — Magenta — Color for buoyancy force visualization.
• Debug Sphere Color Buoyancy Active — Red — Color when buoyancy is actively applying force.
• Debug Sphere Segments — 12 — Detail level of debug spheres.

Enable debug visualization while tuning your pontoon positions, then disable for release builds.

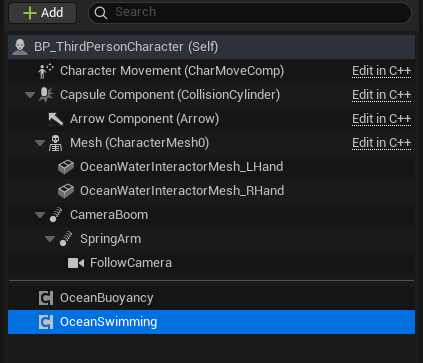

19. Select and review the OceanSwimming component

Select OceanSwimming in the component hierarchy. This component manages:

• Swim locomotion state transitions (walking → swimming → diving).
• Swim animation triggers.
• Surface swimming vs. underwater swimming modes.
• Integration with the Character Movement Component.

The OceanSwimming component works in conjunction with OceanBuoyancy — buoyancy keeps the character floating while OceanSwimming handles the movement mechanics.

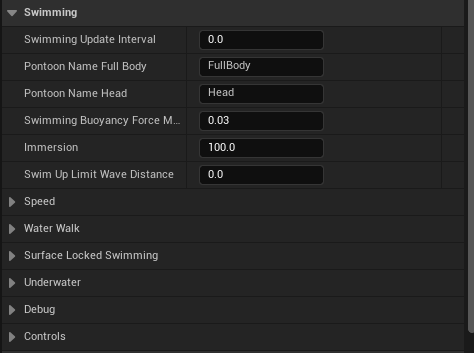

20. Configure the OceanSwimming core settings

With OceanSwimming selected, locate the Swimming category in the Details panel:

• Swimming Update Interval — 0.0 (updates every frame for responsive controls).
• Pontoon Name Full Body — FullBody — Must match the socket name used in your OceanBuoyancy pontoon configuration.
• Pontoon Name Head — Head — Must match the head pontoon socket name.
• Swimming Buoyancy Force Multiplier — 0.03 — Scales the buoyancy force applied during swimming.
• Immersion — 100.0 — Depth threshold for full immersion detection.
• Swim Up Limit Wave Distance — 0.0 — Limits upward swimming near wave peaks (0 = no limit).

The pontoon names create the link between OceanSwimming and OceanBuoyancy — ensure these match exactly.

21. Configure Speed, Water Walk, and Surface Locked Swimming

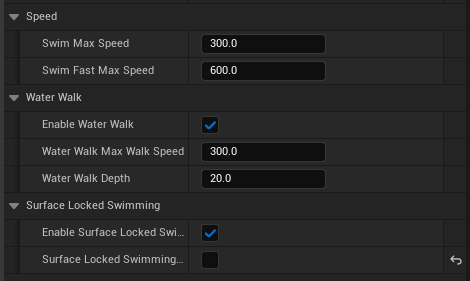

Expand the Speed, Water Walk, and Surface Locked Swimming categories:

Speed:

• Swim Max Speed — 300.0 — Normal swimming speed.
• Swim Fast Max Speed — 600.0 — Sprint swimming speed (when holding the fast swim input).

Water Walk:

• Enable Water Walk — ✅ Enabled — Allows the character to walk on shallow water instead of swimming.
• Water Walk Max Walk Speed — 300.0 — Walking speed in shallow water.
• Water Walk Depth — 20.0 — Maximum water depth where walking is allowed instead of swimming.

Surface Locked Swimming:

• Enable Surface Locked Swimming — ✅ Enabled — When active, the character stays at the water surface and cannot dive.
• Surface Locked Swimming — ❌ Disabled by default — Toggle this at runtime to lock/unlock surface swimming.

Surface Locked Swimming is useful for casual games or when you want to prevent players from diving underwater.

22. Configure Underwater settings

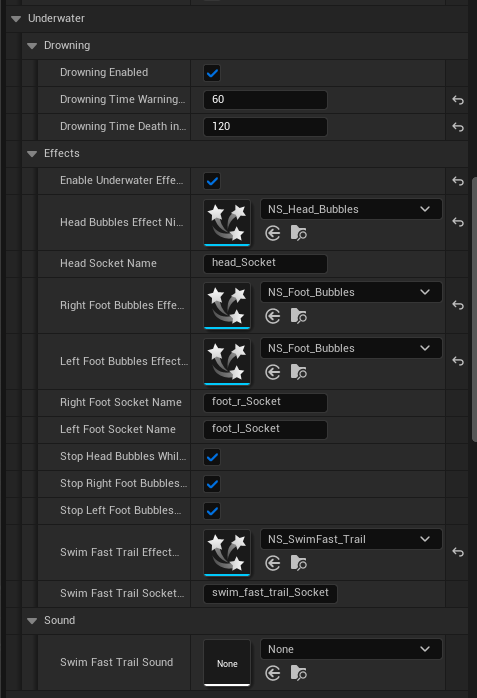

Expand the Underwater category to configure drowning and visual effects:

Drowning:

• Drowning Enabled — ✅ Enabled — Characters can drown when underwater too long.
• Drowning Time Warning — 60 seconds — Time before drowning warning appears.
• Drowning Time Death — 120 seconds — Time until the character dies from drowning.

Effects:

• Enable Underwater Effects — ✅ Enabled
• Head Bubbles Effect Niagara — NS_Head_Bubbles — Particle system for breath bubbles.
• Head Socket Name — head_Socket — Socket where head bubbles spawn.
• Right Foot Bubbles Effect — NS_Foot_Bubbles — Particle system for right foot.
• Left Foot Bubbles Effect — NS_Foot_Bubbles — Particle system for left foot.
• Right Foot Socket Name — foot_r_Socket
• Left Foot Socket Name — foot_l_Socket
• Stop Head Bubbles While... — ✅ Enabled — Stops bubbles during certain states.
• Stop Right Foot Bubbles... — ✅ Enabled
• Stop Left Foot Bubbles... — ✅ Enabled
• Swim Fast Trail Effect — NS_SwimFast_Trail — Trail effect when sprint swimming.
• Swim Fast Trail Socket — swim_fast_trail_Socket

Sound:

• Swim Fast Trail Sound — None — Optional sound cue for fast swimming.

23. Configure Debug and Controls settings

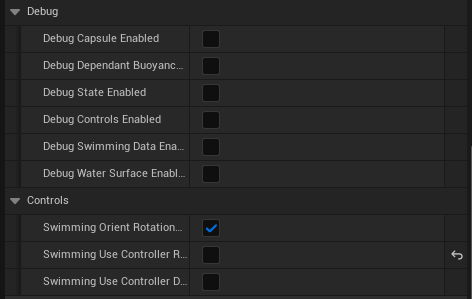

Expand the Debug and Controls categories:

Debug:

• Debug Capsule Enabled — ❌ Disabled — Visualizes the character capsule.
• Debug Dependant Buoyancy — ❌ Disabled — Shows buoyancy dependency info.
• Debug State Enabled — ❌ Disabled — Displays current swim state on screen.
• Debug Controls Enabled — ❌ Disabled — Shows input control debug info.
• Debug Swimming Data Enabled — ❌ Disabled — Displays swimming parameters.
• Debug Water Surface Enabled — ❌ Disabled — Visualizes water surface detection.

Controls:

• Swimming Orient Rotation — ✅ Enabled — Character rotates to face movement direction while swimming.
• Swimming Use Controller Rotation Yaw — ❌ Disabled — When enabled, uses controller yaw for rotation.
• Swimming Use Controller Rotation Pitch — ❌ Disabled — When enabled, uses controller pitch for diving angle.

Enable debug options during development to visualize swim states and troubleshoot issues.

---

Part 4 — Blueprint Events and Input Mapping

This section covers the Blueprint event setup and input action configuration required for swimming controls.

24. Implement Swim Fast and Swim Up/Down input events

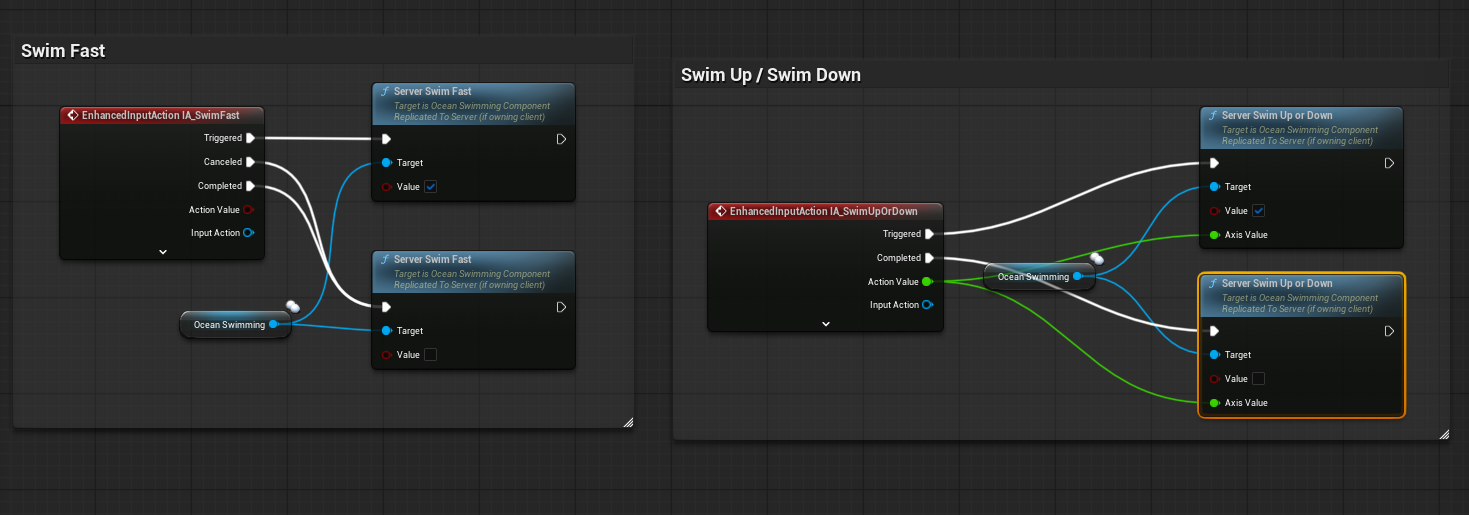

In the character Blueprint's Event Graph, implement the swimming input actions:

Swim Fast (Left Panel):

1. Add EnhancedInputAction IA_SwimFast event node.
2. Connect Triggered → Server Swim Fast (Value = ✅ true).
3. Connect Canceled → Server Swim Fast (Value = ❌ false).
4. Set Target to the Ocean Swimming component reference.

Swim Up / Swim Down (Right Panel):

1. Add EnhancedInputAction IA_SwimUpOrDown event node.
2. Connect Triggered → Server Swim Up or Down with Value and Axis Value.
3. Connect Completed → Server Swim Up or Down to reset when input is released.
4. Set Target to the Ocean Swimming component reference.

The Server prefix indicates these functions are replicated for multiplayer support.

25. Configure Begin Play and Input Mapping initialization

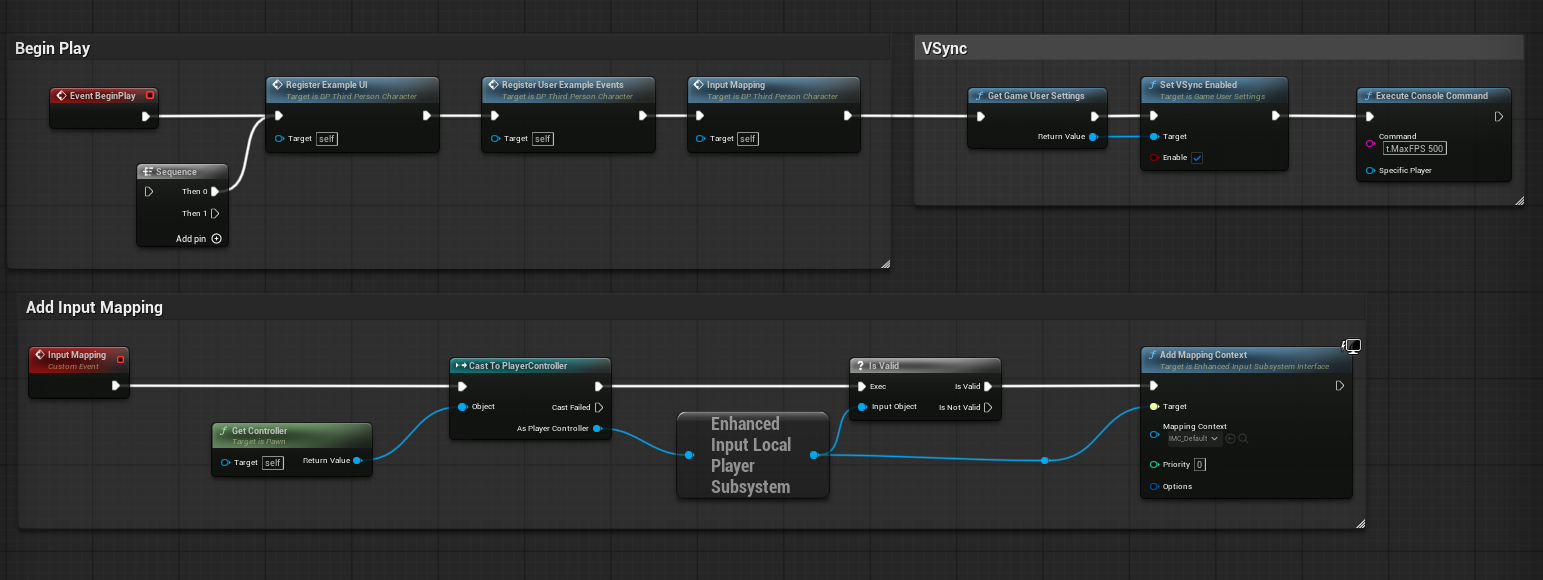

In the Event Graph, set up the initialization sequence on Event BeginPlay:

Begin Play Sequence:

1. Event BeginPlay → Sequence node
2. Then 0 → Register Example UI (Target: self)
3. → Register User Example Events (Target: self)
4. → Input Mapping (Target: self)

VSync Configuration (Optional):

• Get Game User Settings → Set VSync Enabled (Enable: ✅)
• → Execute Console Command (Command: t.MaxFPS 500)

Add Input Mapping (Custom Event):

1. Create a Input Mapping custom event.
2. Get Controller → Cast To PlayerController
3. → Enhanced Input Local Player Subsystem → Is Valid
4. If valid → Add Mapping Context
   • Mapping Context — IMC_Default
   • Priority — 0

This ensures the swimming input actions are registered when the game starts.

26. Configure the Input Mapping Context (IMC_Default)

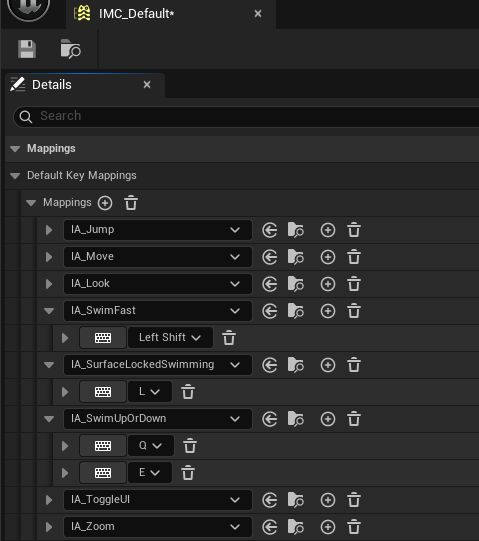

Open the IMC_Default Input Mapping Context asset. In the Details panel, configure the Default Key Mappings:

Input Action	Key Binding	Description
IA_Jump	(default)	Jump / Exit water
IA_Move	(default)	WASD movement
IA_Look	(default)	Mouse look
IA_SwimFast	Left Shift	Sprint swimming
IA_SurfaceLockedSwimming	L	Toggle surface lock
IA_SwimUpOrDown	Q (up), E (down)	Vertical swimming
IA_ToggleUI	(default)	Toggle UI visibility
IA_Zoom	(default)	Camera zoom

The swimming-specific input actions are:

• IA_SwimFast — Hold Left Shift to swim faster.
• IA_SurfaceLockedSwimming — Press L to toggle between surface swimming and free diving.
• IA_SwimUpOrDown — Press Q to swim up, E to swim down.

---

Pontoon Placement Guidelines for Characters

When configuring pontoons for swimming characters, follow these principles:

Pontoon	Socket	Purpose	Recommended Radius
Head	Head or head	Water enter/exit detection	15-25
Body	FullBody, pelvis, or root	Primary buoyancy force	400-600
Hands (optional)	hand_l, hand_r	Splash interaction	10-20

Character Pontoon Tips:

1. Use Water Enter Exit Event Only mode for detection-only pontoons (head, hands).
2. Use Buoyancy mode for the main floating pontoon (body).
3. Keep the body pontoon radius large (400-600) for stable floating without oscillation.
4. Adjust Default Mesh Density (600-800) to control how high the character floats.
5. Increase Water Fluid Linear/Angular Damping (2.0-3.0) for smoother swimming motion.

---

Troubleshooting Common Issues

Problem	Likely Cause	Solution
Character doesn't enter swim mode	Swimming disabled in Water Volume	Enable Enable Swimming in Area in Water Volume settings
Character falls through water	Water Volume collision incorrect	Set collision to OverlapAllDynamic with Generate Overlap Events enabled
Character bobs excessively	Damping too low or radius too small	Increase Water Fluid Linear Damping or Pontoon Radius
Character sinks underwater	Mesh density too high	Reduce Default Mesh Density (try 600-700)
Character floats too high	Mesh density too low	Increase Default Mesh Density (try 800-900)
No splash effects	Water Interactor Meshes missing or misconfigured	Add OceanWaterInteractorMesh components attached to hand sockets
Swim animations not playing	OceanSwimming component missing	Add OceanSwimming component to character
Character doesn't respond to waves	Wave force disabled	Enable Wave XYDirectional Force Enabled in OceanBuoyancy
Swim Fast not working	Input action not configured	Verify IA_SwimFast is mapped in IMC_Default and Blueprint events are connected
Cannot dive underwater	Surface Locked Swimming enabled	Disable Surface Locked Swimming or press the toggle key (default: L)
Character walks instead of swims	Water Walk depth too high	Reduce Water Walk Depth or disable Enable Water Walk
No underwater bubbles	Effects disabled or sockets missing	Enable Enable Underwater Effects and verify socket names match skeleton
Character drowns too quickly	Drowning time too short	Increase Drowning Time Warning and Drowning Time Death values
Swim Up/Down not responding	Input mapping missing	Add IA_SwimUpOrDown to IMC_Default with Q/E bindings
Pontoon names mismatch error	Socket names don't match	Ensure Pontoon Name Full Body and Pontoon Name Head match OceanBuoyancy socket names exactly

---

Summary

In this guide, you learned how to:

1. Set up the scene — Add Oceanology Manager, Water Volume, and water bodies with swimming enabled.
2. Configure the Water Volume — Enable swimming, set collision to overlap detection, and size the volume appropriately.
3. Locate character assets — Find the pre-configured BP_ThirdPersonCharacter or prepare your own character Blueprint.
4. Add swimming components — Add OceanBuoyancy and OceanSwimming components to your character.
5. Configure Water Interactor Meshes — Attach sphere meshes to hand sockets for splash effects.
6. Set up pontoons — Configure head detection and body buoyancy pontoons for stable swimming.
7. Tune buoyancy parameters — Adjust density, damping, and forces for natural swimming behavior.
8. Configure OceanSwimming settings — Set up speed, water walk, surface locked swimming, and underwater effects.
9. Implement input events — Create Blueprint events for swim fast, swim up/down, and surface lock toggle.
10. Set up Input Mapping Context — Configure key bindings for all swimming actions.

With this setup, your character can seamlessly transition between walking on land, wading in shallow water, and swimming in Oceanology water bodies with full control over diving depth and swim speed.
