Prerequisites

• Unreal Engine 5.6 or newer.
• Riverology installed and configured (see the Setup page).
• At least one BP_Riverology river spline placed in your level.
• Basic familiarity with spline editing and runtime debugging in Unreal Engine.

Notes

• Riverology includes a comprehensive debug visualization system that helps you understand how the river spline behaves at runtime. These tools are essential for troubleshooting buoyancy issues, verifying spline configuration, and understanding water surface interactions.
• The debug options are located in the Debug Drawing category of the BP_Riverology actor. Each option provides different information about the river system.
• Debug visualizations are rendered in the viewport during Play mode (PIE) and help identify problems such as incorrect spline widths, surface detection issues, or unexpected water entry/exit behavior.

---

Step-by-step

1. Select the BP_Riverology actor in your scene

Open your level and locate the BP_Riverology actor. You can use the Outliner search box to quickly find it by typing BP_Riverology.

Select the actor to access its properties in the Details panel.

2. Locate the Debug Drawing category

With BP_Riverology selected, scroll through the Details panel to find the Debug Drawing category. This section contains all the debug visualization options:

• Unscaled Spline Width — The base width value used for debug visualization (default: 75.0).
• Draw Debug Spline Width — Visualizes the spline boundaries and width along the river path.
• Draw Debug Strings — Displays detailed numerical information about each point along the spline.
• Surface Debugging — Shows water entry and exit events for actors interacting with the river surface.

Each option can be toggled independently, allowing you to focus on specific aspects of the river behavior.

3. Enable Draw Debug Spline Width

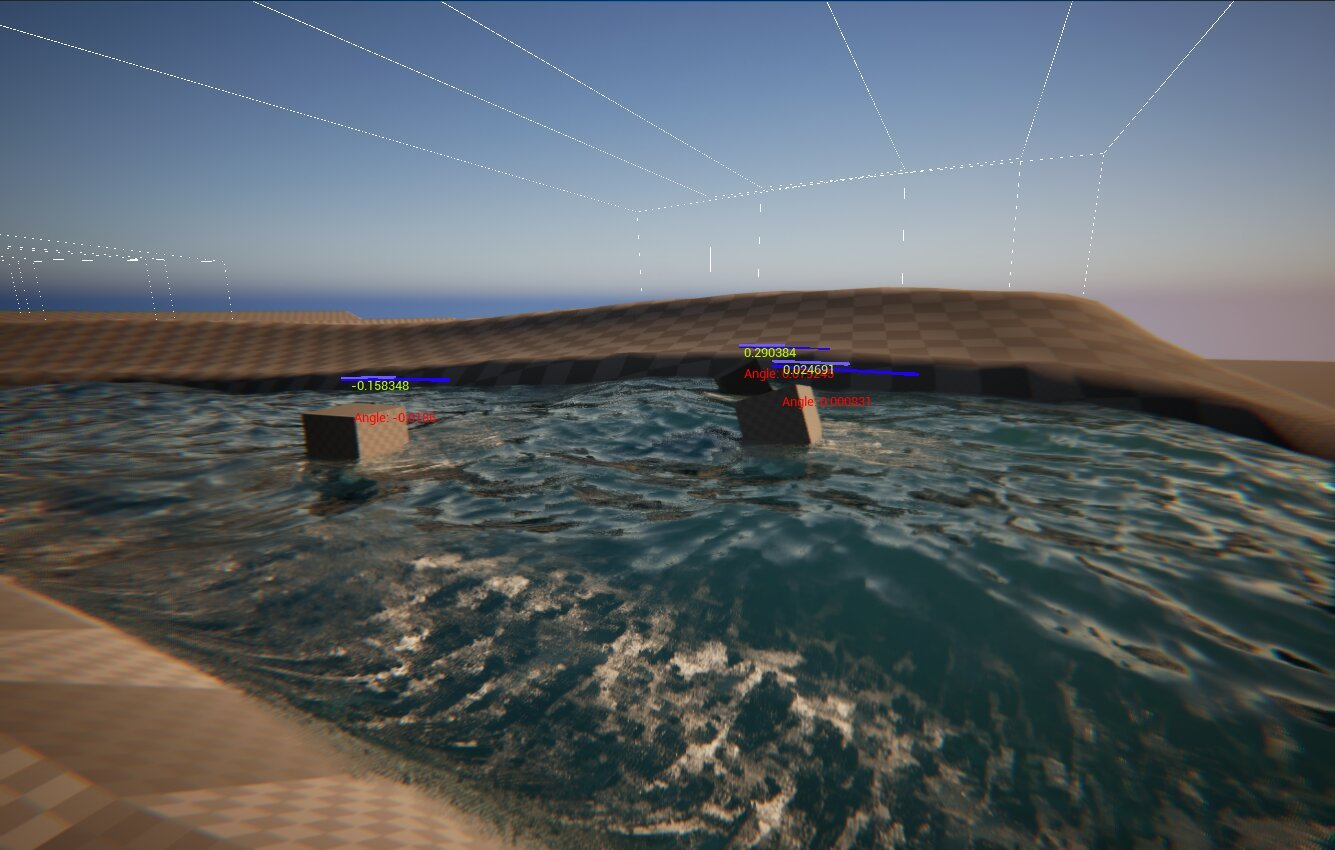

Check the Draw Debug Spline Width option and press Play to enter Play mode. The viewport will display debug lines showing the spline path and its boundaries.

What you will see:

• White dashed lines — The spline path and boundary edges.
• Blue progress bars — Visual indicators showing the normalized position along the spline.
• Yellow/Red angle values — The angle at each spline point, useful for identifying sharp turns or problematic curves.

This visualization helps you verify that the river boundaries are correctly defined and that the spline shape matches your intended design.

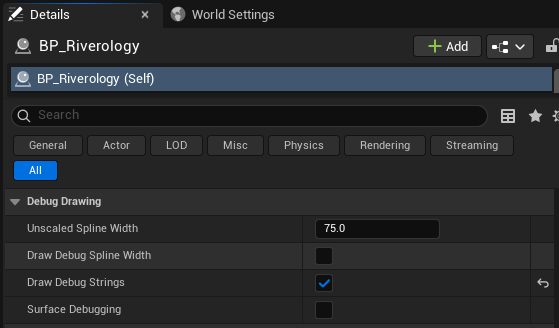

4. Enable Draw Debug Strings

Disable Draw Debug Spline Width and enable Draw Debug Strings to see a different set of debug information.

5. Observe the Debug Strings output

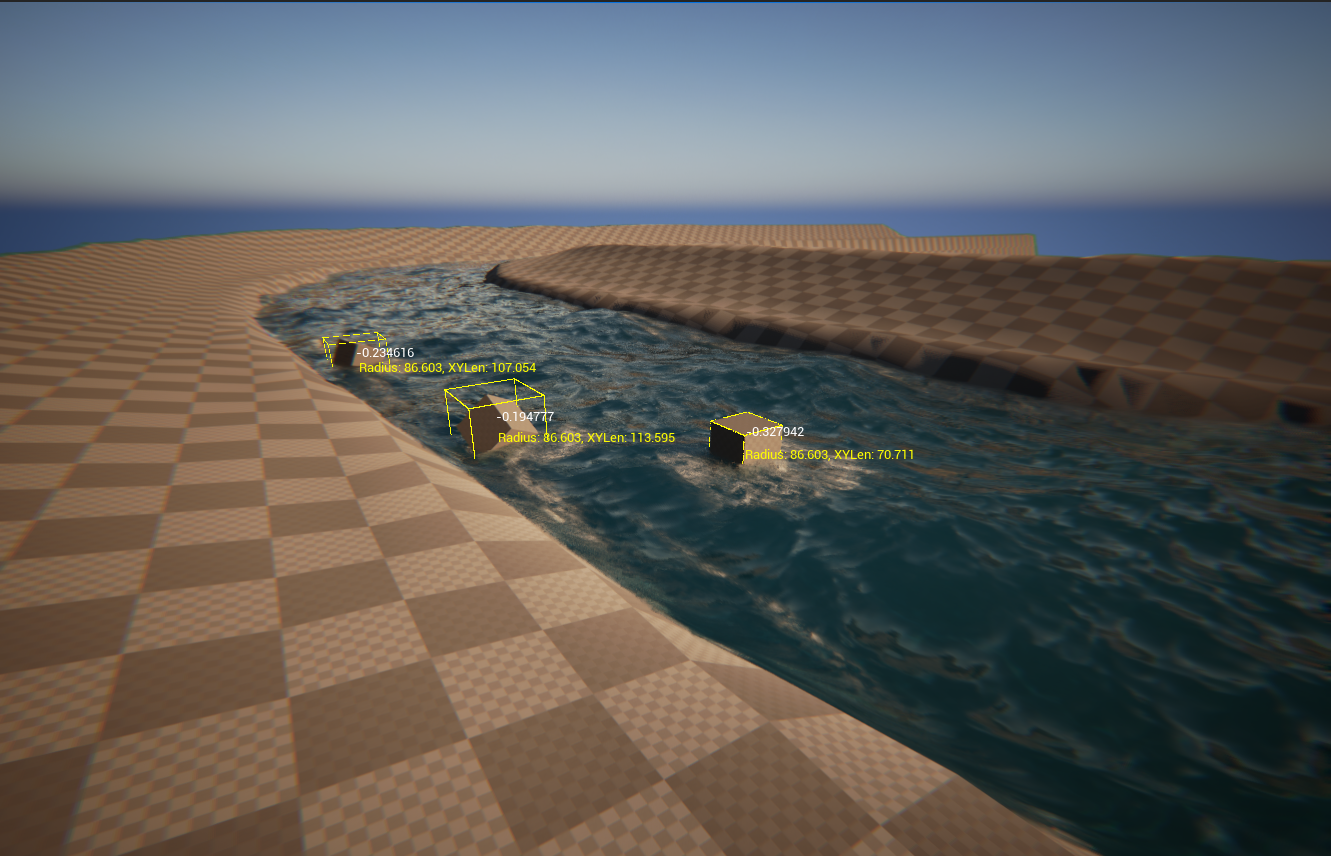

Press Play to see the debug strings visualization. Each buoyant actor interacting with the river will display detailed information:

Displayed values:

• Normalized position — A value between -1.0 and 1.0 indicating the actor's position relative to the spline center (negative = left side, positive = right side).
• Radius — The current river radius at the actor's position along the spline.
• XYLen — The horizontal distance from the actor to the spline center point.

This information is invaluable for debugging buoyancy behavior and understanding how actors interact with the river's variable width along its path.

6. Enable Surface Debugging

Disable Draw Debug Strings and enable Surface Debugging to monitor water surface interactions.

7. Observe Surface Debugging events

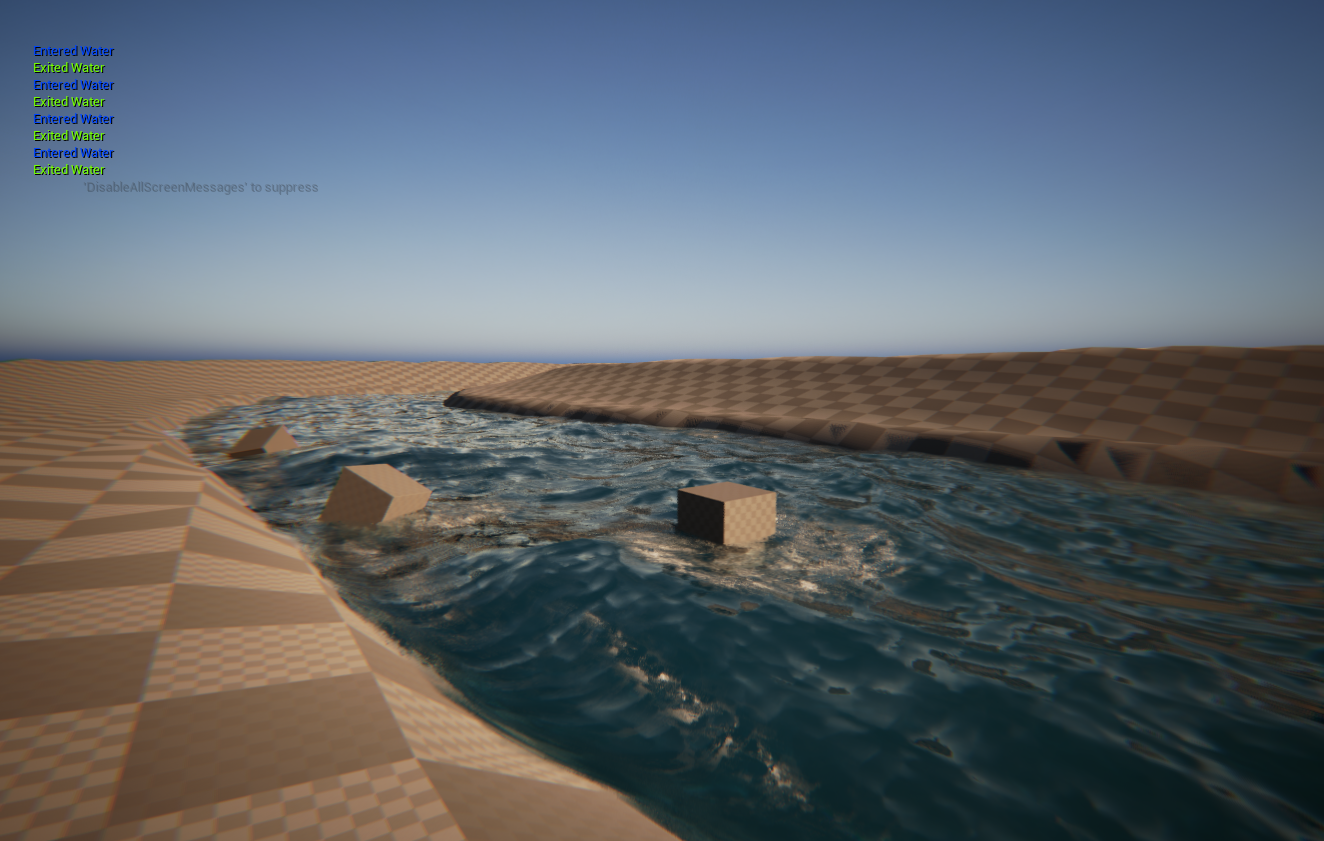

Press Play and watch the top-left corner of the viewport. The system will display real-time messages whenever actors enter or exit the water surface:

Event messages:

• Entered Water (green) — An actor has crossed into the water volume.
• Exited Water (yellow) — An actor has left the water volume.

A small hint message 'DisableAllScreenMessages' to suppress appears, indicating you can disable these messages in production builds.

This debug mode is particularly useful for verifying that water detection is working correctly and for troubleshooting cases where actors unexpectedly enter or exit the water.

---

Debug Options Reference

Option	Purpose	Best Used For
Unscaled Spline Width	Base width value for debug visualization	Adjusting debug line visibility
Draw Debug Spline Width	Shows spline path, boundaries, and angles	Verifying river shape and width
Draw Debug Strings	Displays position, radius, and distance data	Debugging buoyancy calculations
Surface Debugging	Shows water entry/exit events	Troubleshooting surface detection

---

Troubleshooting Common Issues

Problem	Likely Cause	Solution
Debug lines not visible	Debug option disabled or not in Play mode	Enable the option and press Play
Angle values showing red	Sharp turns in spline	Smooth the spline curve at those points
Incorrect radius values	Spline width not properly configured	Adjust spline point scale or width settings
Missing Entered/Exited events	Actor not configured for water detection	Ensure actor has proper collision and buoyancy component
Too many debug messages	Multiple actors triggering events	Use Surface Debugging selectively or filter by actor
Debug strings overlapping	Multiple actors in close proximity	Zoom in or test with fewer actors

---

Summary

In this guide, you learned how to:

1. Access debug options — Locate the Debug Drawing category in the BP_Riverology Details panel.
2. Visualize spline boundaries — Use Draw Debug Spline Width to see the river path and width.
3. Inspect numerical data — Enable Draw Debug Strings to view position, radius, and distance values.
4. Monitor surface events — Use Surface Debugging to track water entry and exit interactions.
5. Troubleshoot issues — Interpret debug information to identify and resolve river configuration problems.

These debug tools are essential during development and should be disabled in production builds for optimal performance.
