Riverology — Refraction
Last updated: 2025-12-09
Prerequisites
- Unreal Engine 5.6 or newer.
- Riverology installed and configured (see the Setup page).
- At least one BP_Riverology river placed in your level.
- Basic familiarity with Materials and optical effects in Unreal Engine.
Notes
- Refraction is the bending of light as it passes through water, creating the characteristic distortion you see when looking at objects beneath the surface. Riverology provides advanced controls to simulate realistic light bending based on viewing angle and water depth.
- The refraction system uses critical angle calculations to determine how much light bends at different viewing angles, simulating real-world optical physics where light refracts more at shallow angles.
- These settings work together with the water surface normals — waves and ripples affect how refraction distorts the underwater view.
Step-by-step
Select your BP_Riverology actor in the Outliner. In the Details panel, expand the Advanced Refraction section, then expand the Refraction subsection to reveal all parameters.
Critical Angle Settings:
| Parameter | Default | Description |
|---|---|---|
| Critical Angle Dot | 0.5 | The dot product threshold that defines the critical viewing angle. Values closer to 0.0 mean more perpendicular viewing angles trigger refraction changes. |
| Critical Angle Width | 0.3 | Width of the transition zone around the critical angle. Higher values create smoother transitions between refraction states. |
| Critical Angle Bend Width | -0.75 | Controls the bending intensity near the critical angle. Negative values invert the bending direction for realistic light behavior. |
Refraction Intensity:
| Parameter | Default | Description |
|---|---|---|
| Refraction Bottom Amount | 1.0 | How much the riverbed is affected by refraction distortion. 1.0 = full refraction effect on bottom. |
| Lip Refraction | 0.95 | Refraction intensity at the water's edge (lip). Controls distortion where water meets air at shallow angles. |
| Refraction | 1.075 | Base refraction index multiplier. Values above 1.0 increase overall distortion intensity. |
Depth-Based Refraction:
| Parameter | Default | Description |
|---|---|---|
| Refraction Far | 1.005 | Refraction multiplier for distant underwater objects. Subtle values prevent over-distortion at depth. |
| Depth for Min Refraction | 5000.0 | Depth in units at which refraction reaches its minimum intensity. Beyond this depth, refraction stabilizes. |
With refraction configured, the effect is most visible when viewing underwater objects from above the surface or when looking at the water-air interface from below.
The refraction system creates realistic optical distortion:
- Shallow angles — Maximum distortion as light bends sharply at the water surface.
- Steep angles — Minimal distortion when looking straight down into the water.
- Depth falloff — Distortion decreases for objects at greater depths, controlled by Refraction Far and Depth for Min Refraction.

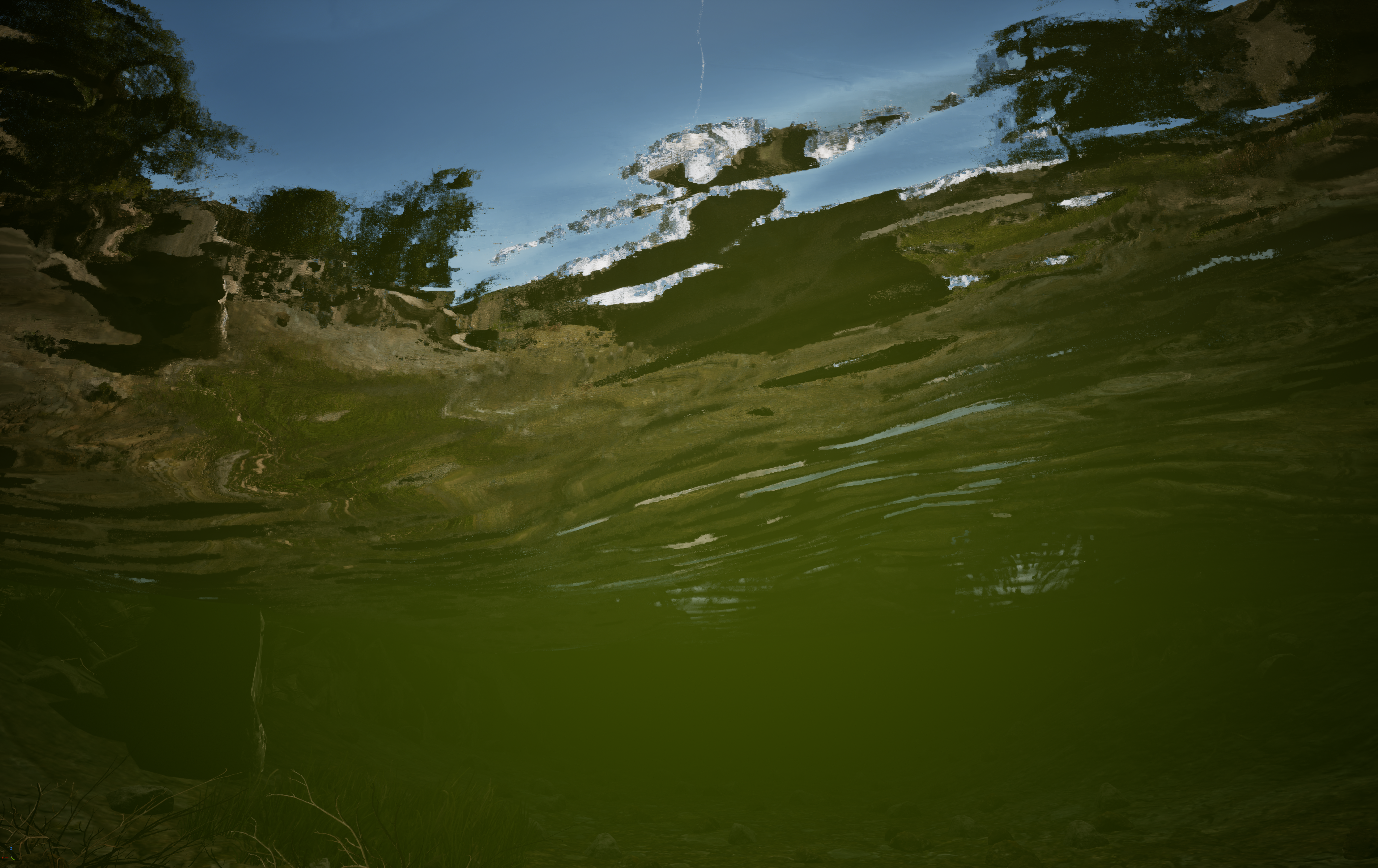

The image shows the view from beneath the water surface, demonstrating how refraction distorts the sky and shoreline when viewed through the water-air boundary.
Parameter Tuning Guidelines
| Scenario | Recommended Adjustments |
|---|---|
| Crystal clear water | Increase Refraction to 1.1–1.15 for more visible distortion |
| Murky/turbid water | Decrease Refraction to 1.0–1.03, increase Depth for Min Refraction to 2000.0 |
| Calm water surface | Decrease Critical Angle Width to 0.15–0.2 for sharper transitions |
| Wavy/disturbed surface | Increase Critical Angle Width to 0.4–0.5 for smoother blending |
| Shallow river | Decrease Depth for Min Refraction to 1000.0–2000.0 |
| Deep river sections | Increase Depth for Min Refraction to 8000.0–10000.0 |
| Subtle effect | Set Refraction to 1.02–1.05, Lip Refraction to 0.98 |
Understanding Critical Angle
The critical angle in optics is the angle of incidence beyond which light is totally internally reflected rather than refracted. In Riverology, these parameters simulate this phenomenon:
| Parameter | Effect on Visual |
|---|---|
| Critical Angle Dot = 0.0 | Critical angle at perpendicular view (looking straight down) |
| Critical Angle Dot = 1.0 | Critical angle at grazing view (looking along surface) |
| Critical Angle Dot = 0.5 | Balanced — critical angle at 60° from surface normal |
The Critical Angle Bend Width negative value creates the characteristic "flip" in refraction direction that occurs at the critical angle boundary, matching real-world optical behavior.
Troubleshooting Common Issues
| Problem | Likely Cause | Solution |
|---|---|---|
| No refraction visible | Refraction value too close to 1.0 | Increase Refraction to 1.05–1.1 |
| Refraction too extreme | Refraction value too high | Decrease Refraction to 1.03–1.05 |
| Harsh transition at water edge | Critical Angle Width too narrow | Increase Critical Angle Width to 0.3–0.5 |
| Underwater view looks flat | Lip Refraction too low | Increase Lip Refraction to 0.95–1.0 |
| Deep water still distorted | Depth for Min Refraction too high | Decrease Depth for Min Refraction to match your river depth |
| Riverbed appears to shimmer excessively | Refraction Bottom Amount too high | Decrease Refraction Bottom Amount to 0.7–0.9 |
| Unrealistic light bending direction | Critical Angle Bend Width incorrect | Adjust Critical Angle Bend Width (negative values for realistic behavior) |
Summary
In this guide, you learned how to:
- Configure critical angle settings — Control how viewing angle affects refraction intensity and transitions.
- Adjust refraction intensity — Fine-tune the base refraction index and edge behavior.
- Set depth-based falloff — Configure how refraction changes with water depth for realistic optical behavior.
- Understand the optical model — Learn how critical angle parameters simulate real-world light bending physics.
Refraction is essential for realistic water rendering, creating the characteristic distortion that makes water feel like a true optical medium rather than a flat surface. Subtle adjustments to these parameters significantly impact visual quality.
